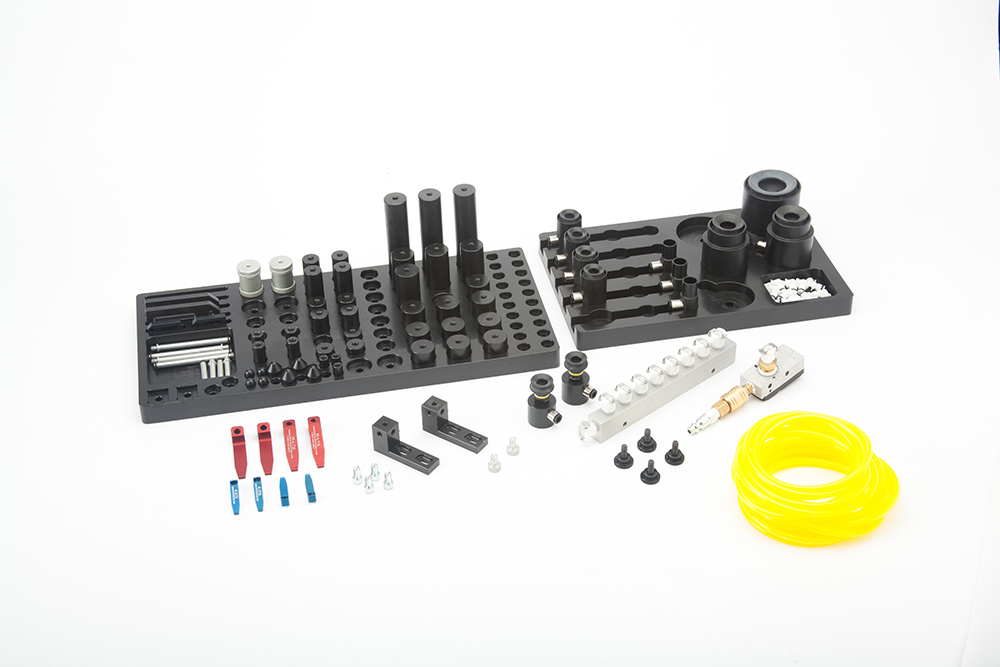

R6-VCK-A

M6 Threaded Vacuum Clamping Kit A with Total Component Count: 102

$2,350.00

In Stock

Description

Vacuum Component Kit with M6 thread.

Total Component Count 102

(4) R6-STS-38 Small Tension Spring – M6 Short Post

(4) R6-LTS-75 Large Tension Spring – M6 Long Post

(2) R6-25-JS 25mm Dia. Large Jackstand

(2) R6-SLD M6 Slide Base

(2) R6-MSLD Mini Slide Base

(4) R6-NC Nylon Cone

(4) R6-SRP Steel Resting Pin

(2) R6-LB Locating Block with Base

(3) R6-10-SC 10mm Suction Cup

(4) R6-20-SC 20mm Suction Cup

(1) R6-50-SC 50mm Suction Cup

(2) R6-20-EXSC 20mm Exposed Suction Cup

(1) R-9P-M 9-Port Manifold

(1) R-VP Vacuum pump assembly

(20) R-12-VH Vacuum hose 12″ length

(1) R-PMCD2202 Straight hose barb connector

(8) R-PMC23028 Elbow connector

(3) R6-910-SO 9mm Dia. x 10mm Standoff

(4) R6-1325-SO 13mm Dia. x 25mm Standoff

(3) R6-1910-SO 19mm Dia. x 10mm Standoff

(4) R6-1925-SO 19mm Dia. x 25mm Standoff

(4) R6-1950-SO 19mm Dia. x 50mm Standoff

(6) R6-2520-SO 25mm Dia. x 20mm Standoff

(4) R6-2525-SO 25mm Dia. x 25mm Standoff

(4) R6-2550-SO 25mm Dia. x 50mm Standoff

(3) R6-25100-SO 25mm Dia. x 100mm Standoff

(1) R6-SCT M6 Small Components Tray

(1) R-VCT Vacuum Component Tray

Additional information

Weight 320 oz
Dimensions 18 × 12 × 8 in
